1.7-4.2GHz 2*12dBi Mimo Dish Antenna
Features |
• Dish Design • ±45 Slant Polarization • 2*12 dBi Gain • 2x2 MIMO • Type SMA Male Connector |
Applications |
• LTE,5G,CBRS • Cellular networks • DAS (Distributed Antenna Systems) • IEEE 802.11b/g/n WiFi applications |
Electrical | ||
Model | ANT1742D12P-XP | |
Frequency Range | 1710-2690MHz | 3300-4200MHz |
Gain | 11±1dBi | 12±1dBi |
VSWR | <1.5 | <1.5 |
Horizontal Beam width | 50±5° | 55±5° |
Vertical Beam width | 50±5° | 55±5° |
Polarization | Dual Slant (±45°) | |
Isolation | >20dB | |
Front to Back Ratio | >20dB | |
Maximum Power Per Port | 50W | |
Impedance | 50Ω | |
Lighting protection | DC Ground | |

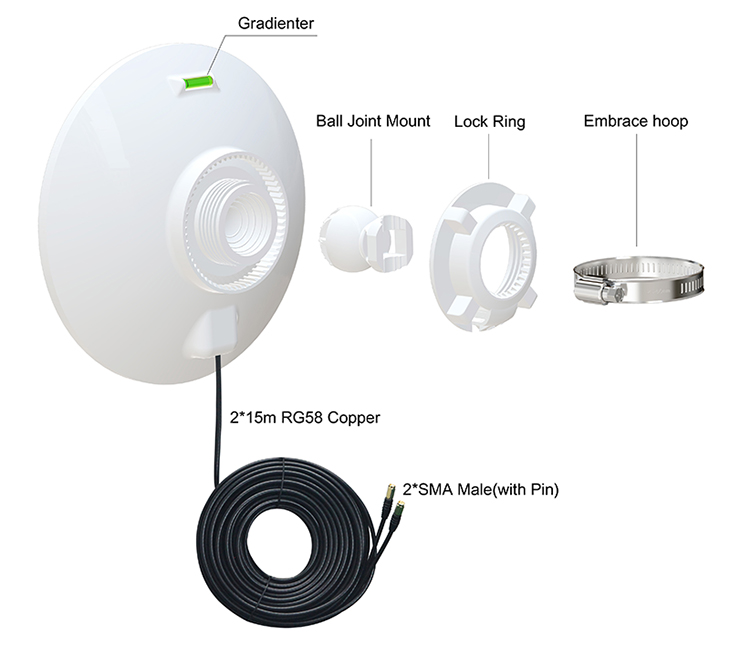

Mechanical | ||
Connector | 2*SMA Male(with Pin) | |
Antenna Size | Φ120mm | |
Antenna Weight | 1.8kg | |
Cable length | 2*15m RG58 Copper | |
Antenna color | white | |
Diameter of the Pole | Φ30mm to φ50mm | |
Mechanical Tilt | ± 40° | |
Operational Temperature | -40°C to +70°C (-32°F to +158°F) | |
